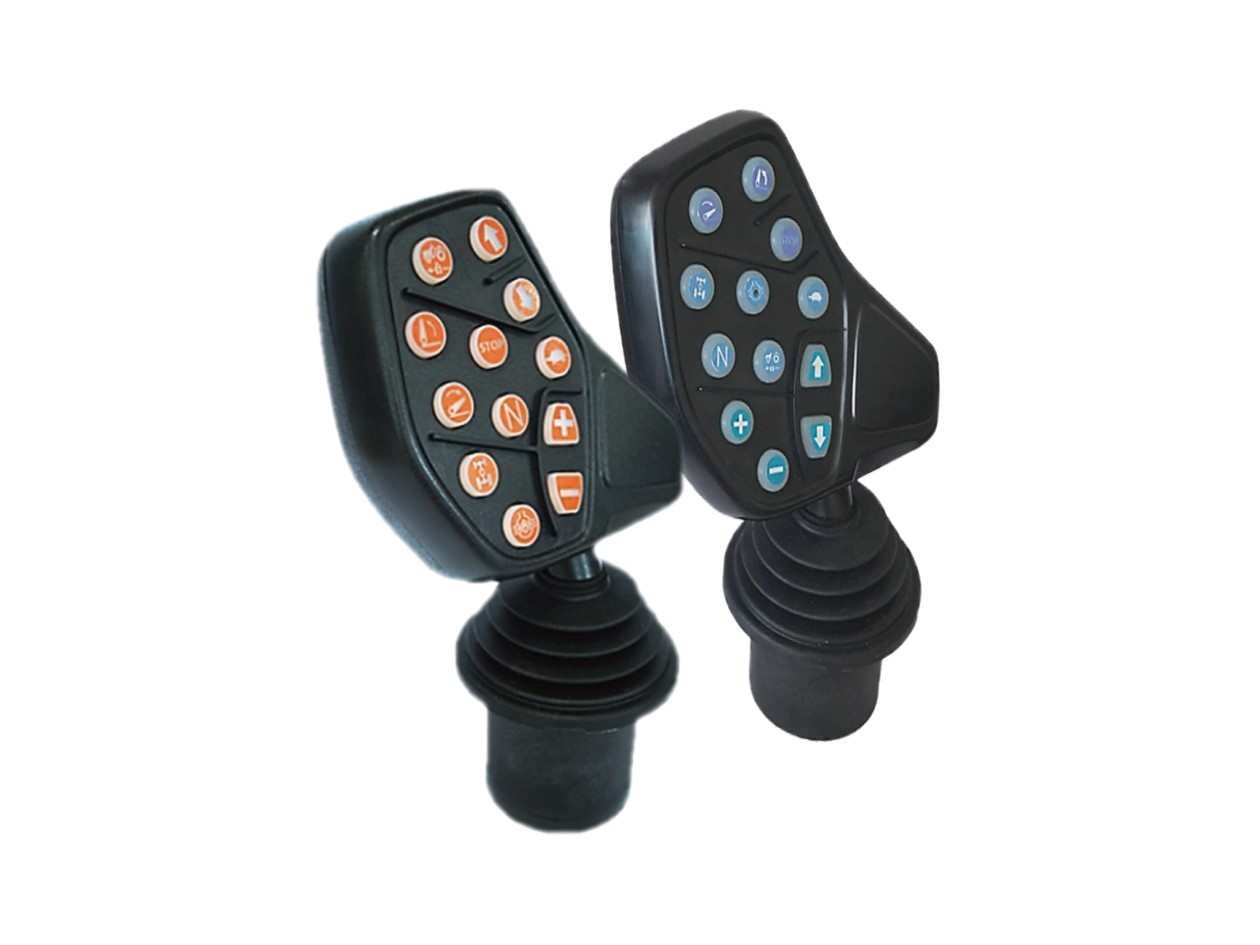

    Electronic Joystick MTJ2

제품상세정보


TYPICAL APPLICATIONS:

The Single-Axle Medium Hall Effect Joystick is a full function operator control in a package that will fit in an armrest or on a panel. It utilizes ComeSys’s patented Hall effect technology for unmatched life and reliability. Electronics are sealed and it has an operational life of ten million cycles in all directions. Additional options include CAN J1939 versions, multiple analog and digital auxiliary control outputs, redundant sensors and a variety of output configurations, along with a variety of grip and switch options.


Features/Benefits:

Designed for armrest & panel mounting

Proven contactless analog output Hall effect technology

Available with a variety of grip & switch options

Redundant sensors available

Various output configurations: Analogue, PWM, CAN J1939

5V standard, 12V & 24V available

RoHS/Reach compliant




TYPICAL SPECIFICATIONS

Electronics

Seal Integrity: IP67

EMC: Tested in accordance with ISO11452-4, ISO10605, CISPR25

Input Voltage: 5/8/12/24Vdc as requested

Signal and Switches: Signal type and switch position to be in accordance with customer specification.



Mechanical

Knob Mechanical Travel: 36deg +/- 2deg

With bellows, 20°C to 85°C at grip 0.25kg min to 1.60kg max

Adjustable as per customer specification.

End-Break: TBC



Environment

Operation Temp.: Low force -20 ~ +85℃ & High Force -40 ~ +85℃ ( KS R0016 3 )

Storage Temp.: -40 ~ +105℃

Insulation Resistance Test: JIS C5402-3-1

Water Test: KS R0015 R2

Vibration: KS R1034 3 - B

Salt fog: JIS Z2371

Impact: Free drop onto a smooth concrete floor from a height of one meter, a total of 1times.

Life: - 3 M Cycle at Full Travel
